V3 SUBMERSIBLE BOREWELL

Applications :


FARMING
Farming
GARDENING
Gardening
DOMESTIC
Domestic
WATER-SUPPLY
Water Supply
INDUSTRIAL
Industrial

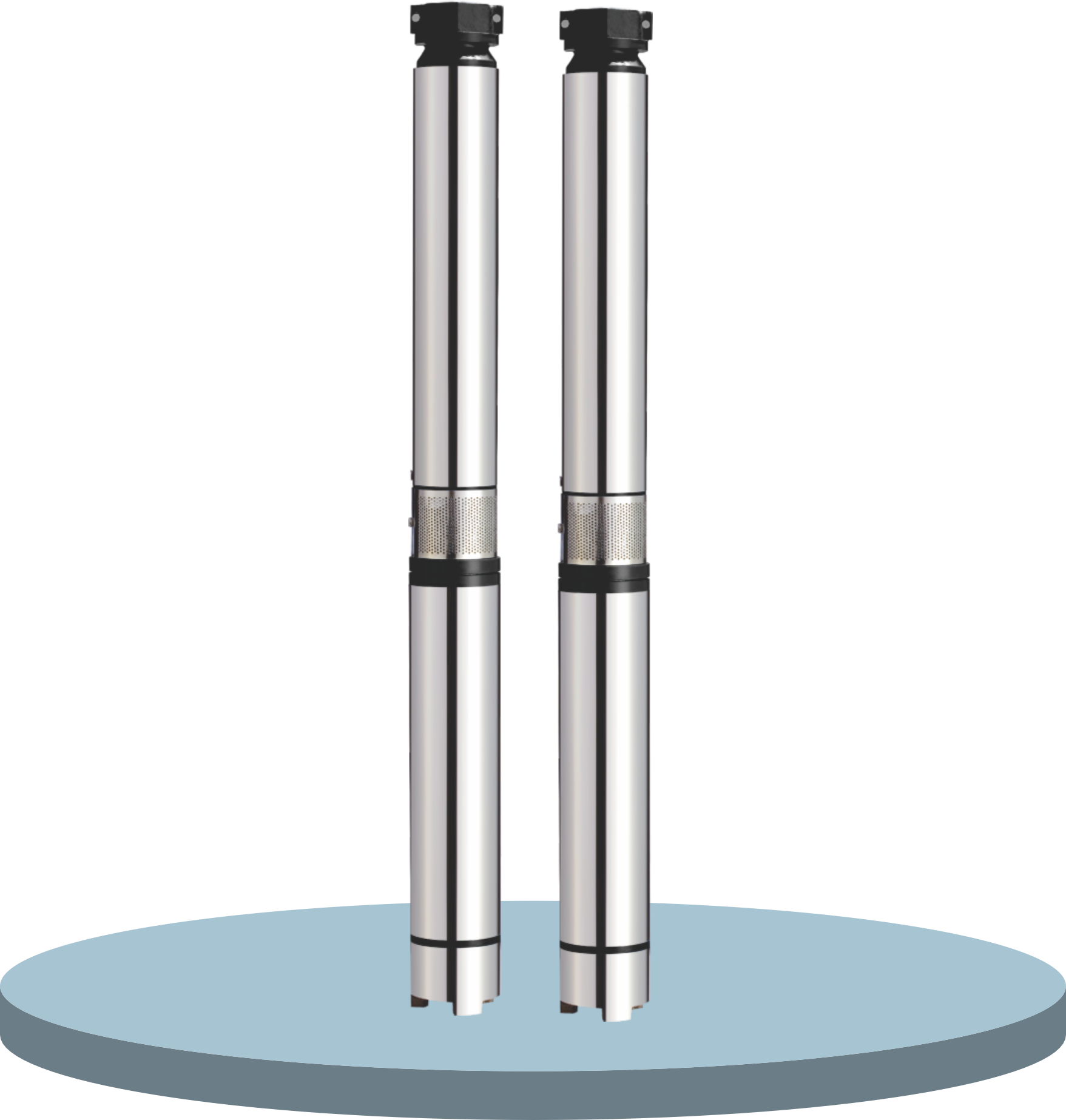

3" Submersible Pumpset

Material Of Construction - Motor

• Oil Seal : Nitrile butyl rubber
• Motor Shaft : SS-420
• Motor Body Pipe : J4
• Motor Bush : LTB-4 / Teflon
• Thrust bearing assembly : SS - 420 & Teflon
• Diaphragm : High Nitrile Butyl Rubber
• Motor Base : SS-410
• Housing Set : Cast Iron

Material Of Construction - Pump

• Check Valve Housing : Cast iron
• Check Valve : SS-410 / Nylon
• Outer Shell : J4
• Impeller : Noryl
• Bowl : Noryl
• Counter Bush : LTB-4
• Pump Bush : NBR / LTB 4
• Pump Sleeve : SS-410
• Suction : Cast iron
• Pump Shaft : SS-410
• Coupling / Pump Couple : SS-410

Read & Understand Benifits

• Motor portion covered with corrosive resistance Stainless steel J4 shell
• More durability and hygiene
• High operating efficiency
• Specially designed thrust bearing to withstand high axial thrust load
• Extremely hardwearing water lubricated bearing
• Thread type motor construction ensures service feasibility
• Specially designed Deep Drawn type pump ensures perfect alignment and Thereby increases the life of the pump set
• Designed for wide voltage operation
• Best alternative for JET & Compressor pump set
• Additional intermediate bearing in higher stage pumps.

Product Specification :

Salient Features :
