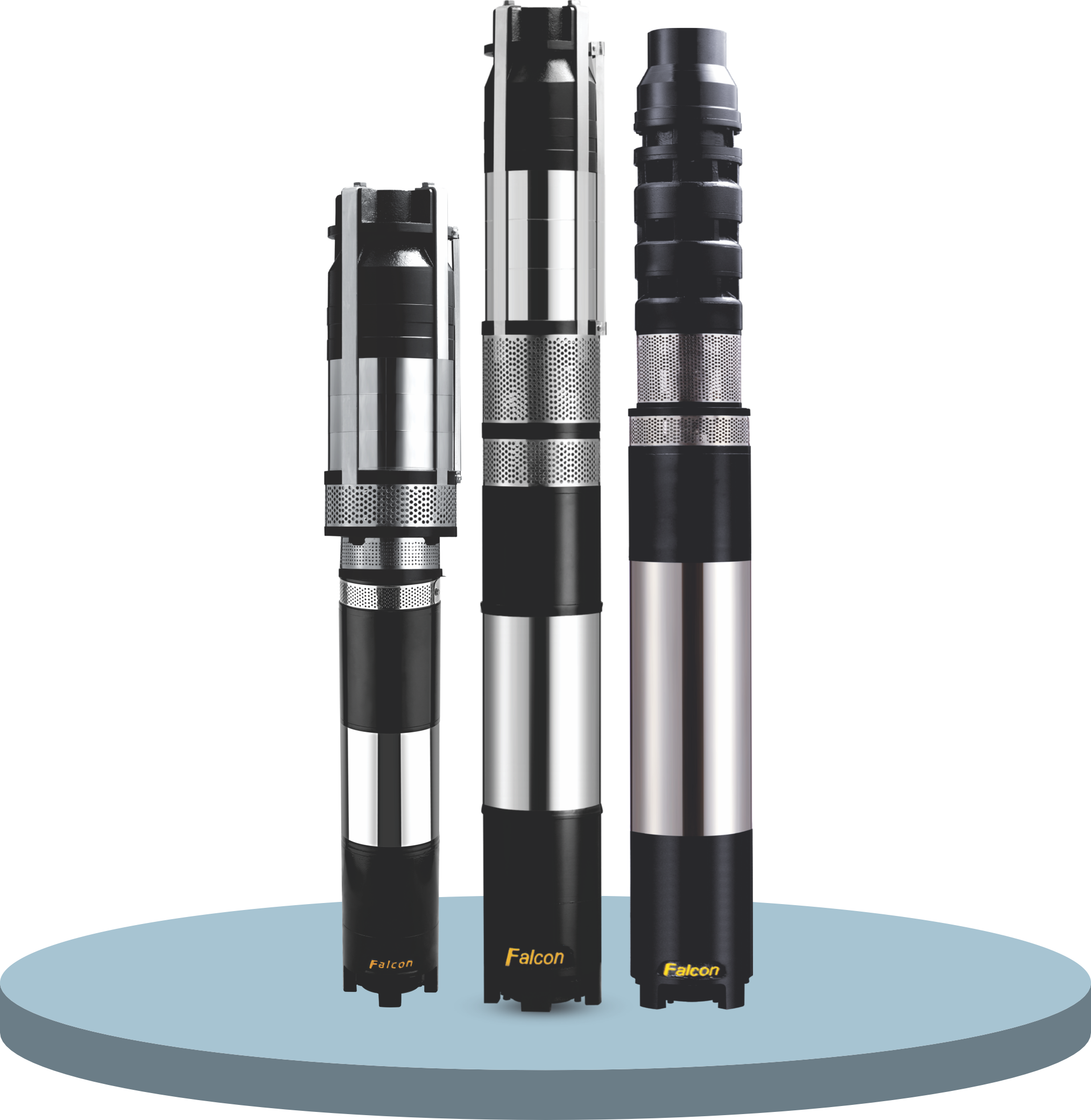

V10 SUBMERSIBLE BOREWELL

Applications :


FARMING
Farming
FIRE-FIGHTING APPLICATION
Fire Fighting Application
LARGE-SCALE FARMING
Large Scale Farming
WATER-SUPPLY
Water Supply
INDUSTRIAL
Industrial

10" Submersible Motors

Material Of Construction - Motor

• Oil Seal : Nitrile butyl rubber
• Motor Shaft : SS - 420
• Motor Body Pipe : SS -240Cu
• Motor Bush : LTB-4 / Teflon
• Thrust bearing assembly : SS - 420 & Carbon
• Diaphragm : High Nitrile Butyl Rubber
• Motor Base : Cast Iron
• Housing Set : Cast Iron

Material Of Construction - Pump

• Check Valve Housing : Cast iron
• Check Valve : SS-410
• Impeller : SS-304 / SS-410
• Bowl : SS-304 / Cast Iron
• Counter Bush : LTB-4 / SS - 304
• Pump Bush : NBR / LTB 4
• Pump Sleeve : SS-410
• Suction : Cast iron
• Pump Shaft : SS-410
• Coupling / Pump Couple : SS-410

Read & Understand Benifits

• SS 304 Grade Investment Casting Bowl and SS-304 Grade Impeller in radial flow MRS series 27Mtr head per stage in radial flow series.
• FG 250 Cast Iron Bowl with CED Catted and SS-304 Grade Impeller in Mix flow FMC Series 22Mtr head per stage in Mix flow series.
• Specially designed high performance thrust bearing (SS-420 Tilting Pad with Carbon plate) to with stand axial thrust loads.
• Dynamically balanced rotating parts ensures minimum vibration and longer life.
• Designed for wide voltage fluctuations.
• Motor portion covered with corrosive resistance Stainless steel (SS 304) shell.
• More durability and hygiene.
• High operating efficiency.
• Specially designed thrust bearing to withstand high axial thrust load.
• Extremely hardwearing water lubricated bearing.
• Thread type motor construction ensures service feasibility.
• Specially designed Deep Drawn type pump ensures perfect alignment and Thereby increases the life of the pump set.
• Designed for wide voltage operation.
• Best alternative for JET & Compressor pump set.
• Additional intermediate bearing in higher stage pumps.

Product Specification :

Salient Features :
