V6 SUBMERSIBLE BOREWELL

Applications :


FARMING
Farming
GARDENING
Gardening
HIGH-DEPTH BOREWELL
High Depth Borewell
WATER-SUPPLY
Water Supply
INDUSTRIAL
Industrial

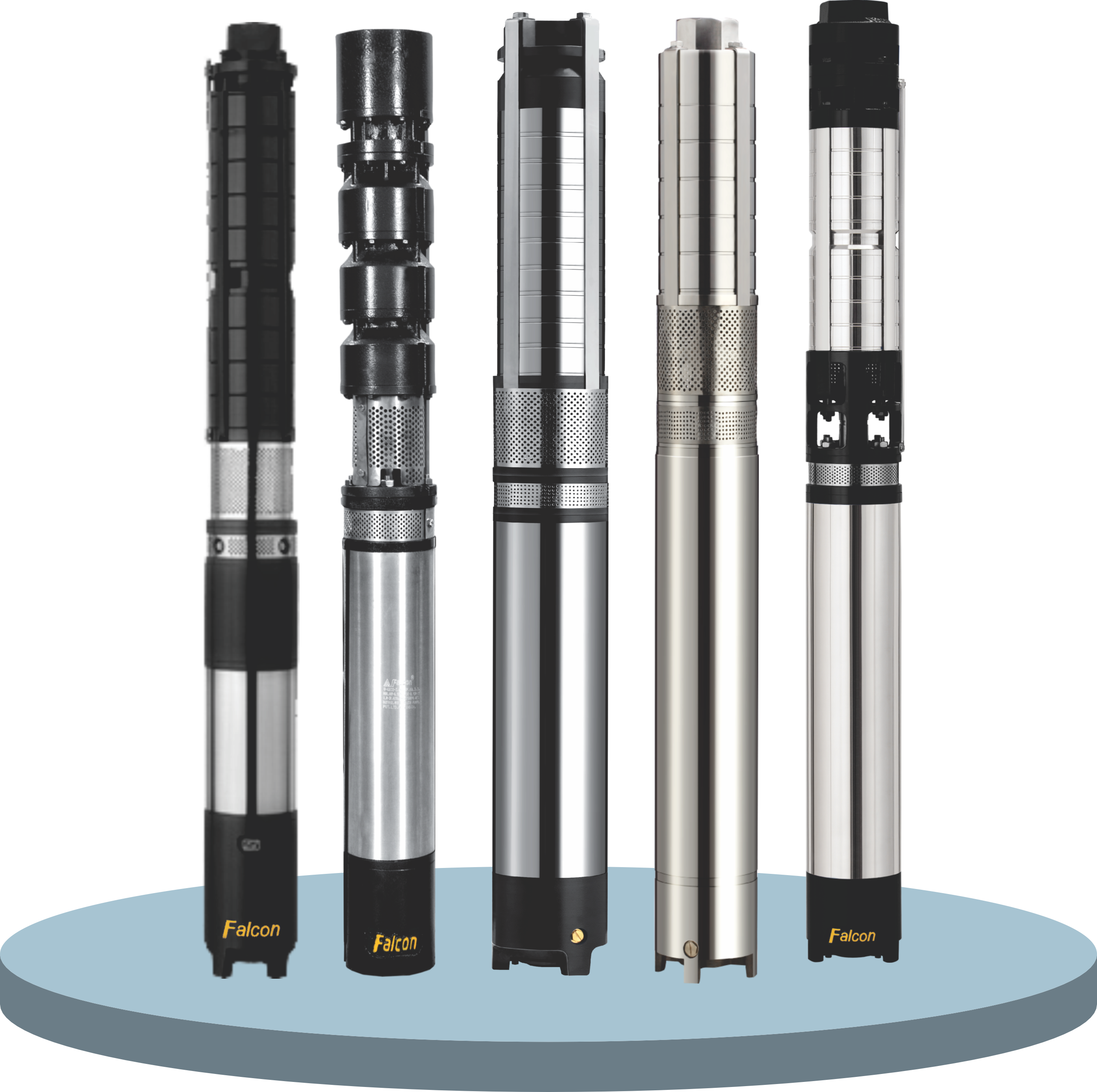

6" Submersible Pumpset

Material Of Construction - Motor

• Oil Seal : Nitrile butyl rubber
• Motor Shaft : SS - 420
• Motor Body Pipe : J4
• Motor Bush : LTB-4 / Teflon
• Thrust bearing assembly : SS - 420 & Carbon
• Diaphragm : High Nitrile Butyl Rubber
• Motor Base : Cast Iron / SS - 304
• Housing Set : Cast Iron / SS - 304

Material Of Construction - Pump

• Check Valve Housing : (Outlet) Cast iron / SS – 304
• Check Valve : SS-410 / Nylon
• Impeller : SS - 304 / SS-410 / Nylon
• Bowl : SS - 304 / SS-410 / Cast Iron
• Counter Bush : SS - 420
• Pump Bush : NBR / LTB 4
• Pump Sleeve : SS-410
• Suction : Cast iron
• Pump Shaft : SS-410
• Coupling / Pump Couple : SS-410

Read & Understand Benifits

• SS 304 Grade Investment Casting Bowl and SS-304 Grade Impeller in radial flow series
• 60 feet head per stage in radial flow series
• Specially designed high performance thrust bearing (SS-420 Tilting Pad with Carbon plate) to with stand axial thrust loads.
• Dynamically balanced rotating parts ensures minimum vibration and longer life
• Motor portion covered with corrosive resistance Stainless steel J4 shell
• More durability and hygiene
• High operating efficiency
• Extremely hardwearing water lubricated bearing
• Specially designed Deep Drawn type pump ensures perfect alignment and Thereby increases the life of the pump set
• Designed for wide voltage operation
• Additional intermediate bearing in higher stage pumps
• Fully SS pump set are available in SS - 304 Grade

Product Specification :

Salient Features :
